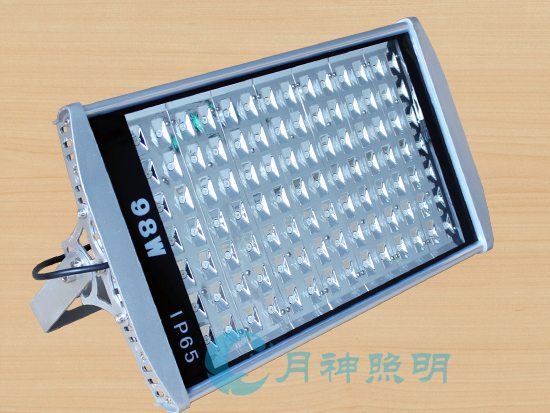

HX-SDD-01 (98W plane LED tunnel lamp)
Size: 560mm*305mm
Light material: aviation aluminum, glass, stainless steel fasteners, waterproof silicone ring
Light body color: the color of alumina
LED chip: genuine American Bridgelux chips
Chip size: large size 45mil chip
Service life: more than 50 thousand hours
Driven placement: rear (fixed to the rear of the lamp body on the back of the dedicated support)
Driving mode: high power factor isolated constant current drive
Power factor: 0.96
Use voltage: AC85~260V (wide voltage)
Power: 98W
To replace the traditional light source: replace 250W high pressure sodium lamp tunnel
Energy efficiency: more than 75%
Color index: 80Ra
Flux value: 130Lm/W
Light emitting color: white, warm white light (1800K-6500K between optional)
Installation height: 3-9 m tunnel wall installation
Light emitting angle: 60*120 degrees
Light distribution form: long form with light, more suitable for tunnel narrow road lighting
Protection level: IP65 (waterproof and dust, applicable to all kinds of dry or wet tunnel environment)
Installation way: the bracket is installed (light body comes with U type bracket).
Wind resistance: 60 m / sec
Temperature: -30 ~ 60
Start: instant start
Features: high efficiency and energy saving, LED tunnel lamp, high brightness, no UV, no flicker, no light pollution. Pure color, solid light source, not afraid of shock and fall, etc.. Aluminum shell, baking powder, acid and alkali resistant, high resistance to ultraviolet radiation. Isolated constant current drive, long service life. Comes with mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance free during use.
Application in highway tunnel, railway tunnel, highway tunnel, city underground tunnels, underground parking lot, workshop, factories, docks, square, billboards, lighting, protection grade IP65, waterproof and dustproof, indoor and outdoor can be used.
